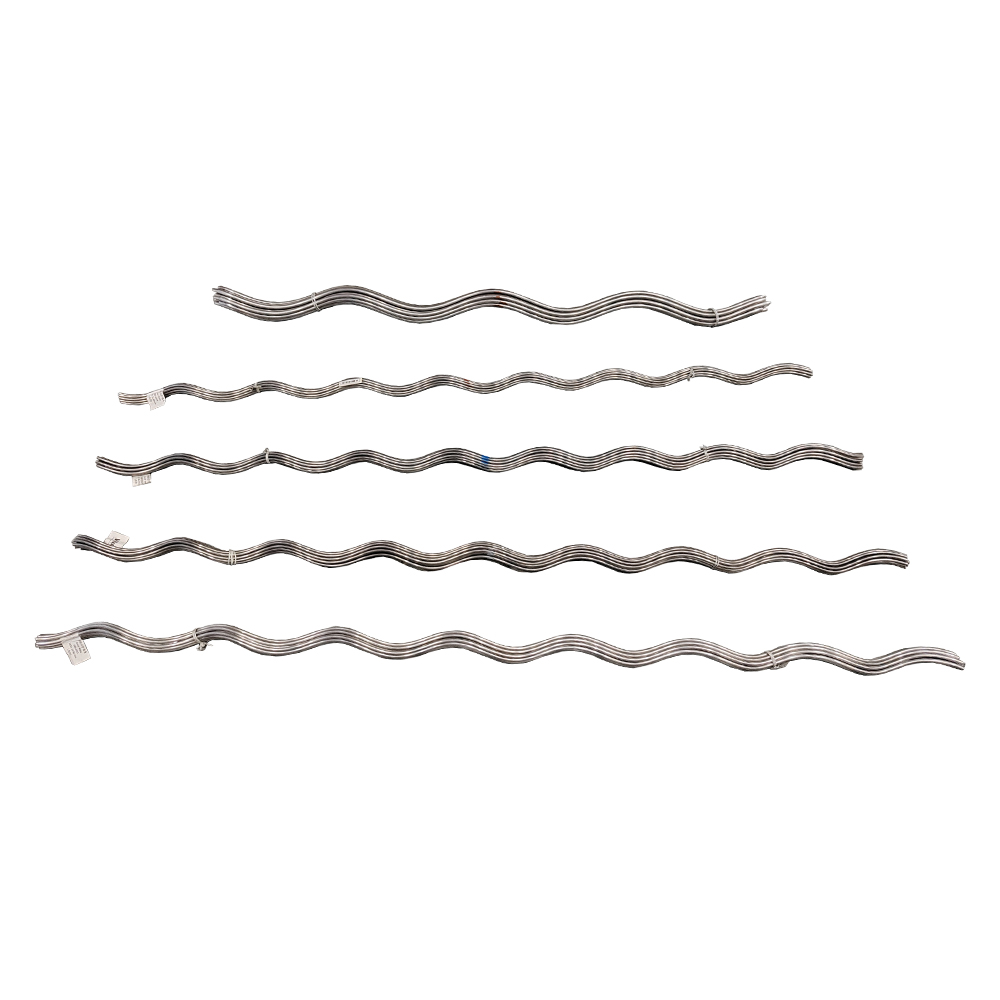

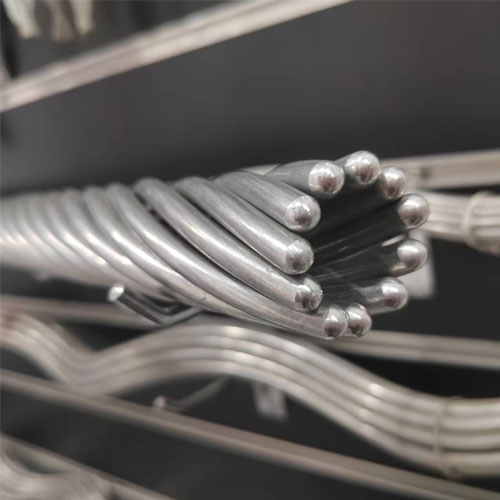

Preformed armour rods for ACSR conductor
Armour Rods are designed to protect cable against bending, compression, abrasion, and flash-over. They are also used to repair damaged aluminum-based conductors and restore the conductors mechanical strength and conductivity.
Catalog Number Single/Double support | Diameter Range (mm) | Conductor Type （GB-1179-83) ACSR LGJ/LGJF | Length (mm) | Weight (kg) | Color Code |
VAR-0114 VAR-0314 | 7.85-8.28 |
| 1110 1420 | 0.3 0.4 | Red |
VAR-0117 VAR-0317 | 9.31-9.88 | 50/8 | 1270 1580 | 0.4 0.5 | Black |
VAR-0120 VAR-0320 | 11.10-11.76 | 50/30,70/10 | 1370 1680 | 0.6 0.7 | Blue |
VAR-0123 VAR-0323 | 13.24-14.00 | 70/40,95/15,90/20 | 1470 1780 | 0.7 0.8 | Black |
VAR-0124 VAR-0324 | 14.01-14.86 | 120/7 | 1520 1830 | 0.8 1.0 | Red |
VAR-0125 VAR-0325 | 14.87-15.39 | 120/20 | 1580 1880 | 0.9 1.1 | Black |
VAR-0126 VAR-0326 | 15.40-16.00 | 95/55,120/25,150/8 | 1630 1930 | 1.0 1.1 | Purple |
VAR-0128 VAR-0328 | 16.65-17.25 | 150/20,150/25 | 1680 1980 | 1.1 1.3 | Brown |
VAR-0129 VAR-0329 | 17.26-17.86 | 150/35 | 1730 2030 | 1.3 1.5 | Blue |
VAR-0130 VAR-0342 | 17.87-18.80 | 120/70,185/10 | 1830 2130 | 1.4 1.6 | Green |
VAR-0131 VAR-0132 | 18.81-19.86 19.87-20.68 | 185/25,185/30,185/40,210/10 210/25,210/35 | 1830 1930 | 1.5 2.0 | Orange Purple |
VAR-0133 | 20.69-21.46 | 210/50 | 1930 | 2.0 | Red |
VAR-0134 | 21.47-23.04 | 240/30,240/40,240/55,300/15 | 1980 | 2.2 | Blue |
VAR-0135 | 23.05-23.60 | 300/20 | 2030 | 2.5 | Green |
VAR-0136 | 23.61-24.79 | 300/25,300/40,300/50 | 2230 | 2.7 | White |
VAR-0137 | 24.80-25.81 | 300/70 | 2340 | 2.5 | Yellow |
VAR-0138 | 25.82-26.29 | 400/25 | 2380 | 4.2 | Brown |
VAR-0139 | 26.30-27.03 | 400/20,400/35 | 2430 | 4.2 | Blue |
VAR-0140 | 27.04-27.89 | 400/50 | 2430 | 4.2 | Green |
VAR-0141 | 27.90-28.93 | 400/65 | 2540 | 4.7 | Orange |
VAR-0142 | 28.94-29.49 | 400/95 | 2540 | 4.8 | Purple |
VAR-0143 | 29.50-30.68 | 500/35,500/45 | 2540 | 5.2 | Red |
VAR-0144 | 30.69-32.23 | 500/65 | 2540 | 5.85 | Black |
VAR-0145 | 32.24-33.71 | 630/45 | 2540 | 5.9 | White |
VAR-0146 | 33.72-35.31 | 630/55 | 2540 | 6.2 | Yellow |
Company Introduction
Vilun Electric Co., Ltd is a professional manufacturer for helical-formed fittings and laser equipments. It is a high-tech electric power equipment materials manufacturer with research, production and sales for core products of helical formed power fittings,helical-formed optical fiber fittings and power switchgear.
It is guaranteed the company's products safety and reliability by scientific production technology, professional techinical personnel, perfect quality assurance system, and advanced test and inspection equipments. Vilun has already obtained the production license power fittings,license of power facilities contractor by national technical supervision and inspection organization;And also through the ISO9000 quality management system authentication.
The main products of Vilun are: helical-formed tension clamp for conductor, helical-formed suspension clamp for conductor, guy end grip,helical-formed fittings for ADSS fiber optical cables, helical-formed fittings for OPGW fiber optical cables, helical-formed splicing,helical-formed spiral vibration clamp,helical-formed vibration damper，laser welding machine,laser marking machine,laser cutting machine and so on.
The special spiral helical-formed product design,makes our helical formed fittings have the benefit of easy installation,reliable performance,anticorrosion,anti-fatigue and guarantee the installation quality easily. It can improve the protection of line and reduce the influence to the line under guarantee the requirement of design.Vilun's products have applied to power transmission and distribution of power system companies widely,and get extensive praise after many years application on lines.Vilun's products have sold to many countries in Europe and America, Asia,Africa, Oceania.
Holding on the principle of "develop with technique,subsist with quality',the company provides the customers with first-class products, fine pre-sale and post sales service. "The pursuit of excellence,and create the future together ",all staff in Changchun Vilun will continue devote us to developing power transmission and distribution fitting with all world power enterprises.
